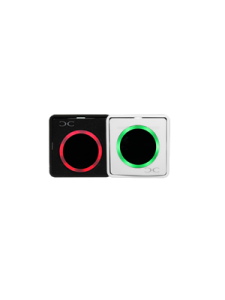

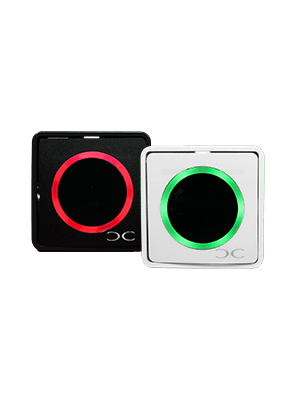

WAVE XS touchless button
Touchless technology
Choose between several design options, or upload your own picture or symbol via software
Voltage interval: 12 – 24 VDC, 30 mA
2 Outputs
IP65 protection rate for indoor and outdoor use
Operating temperature: -20°C ~ +70°C
HxWxL Danish: 63x63x10 mm.
HxWxL European: 80x80x9 mm.
480390 WAVE XS Danish black
480391 WAVE XS Danish white
480490 WAVE XS European black
480491 WAVE XS European white
Keypad and Mifare reader for Stand Alone
- Up to 190 user codes/tags
- 2 outputs
- All programming can be copied between readers via DESFire card (Art. 480081)
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
480010 CM1000 black, Mykey
480011 CM1000 white, Mykey
482010 CM1000 black, Classic
482011 CM1000 white, Classic
Keypad and Mifare reader for Stand Alone
- Up to 190 user codes/tags
- 2 outputs
- All programming can be copied between readers via DESFire card (Art. 480081)
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
MIFARE / DESFire, NFC and EMV ISO 7816 NDEF
480040 CM1000 EMV black, Mykey
480041 CM1000 EMV white, Mykey
482040 CM1000 EMV black, Classic
482041 CM1000 EMV white, Classic
Keypad and Proximity reader for Stand Alone
- Atmel and EM compatible
- Up to 190 user codes/tags
- 2 outputs
- Permanent codes, single use codes and 24 hour codes
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
480015 CP1000 black, Mykey
480016 CP1000 white, Mykey
482015 CP1000 black, Classic
482016 CP1000 white, Classic
Keypad reader for Stand Alone
Up to 190 user codes
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
480000 C1000 black, Mykey
480001 C1000 white, Mykey
482000 C1000 black, Classic
482001 C1000 white, Classic
Low Power Keypad for Stand Alone
- Up to 190 user codes
- H-bridge or open collector output
Several code functions for both single-use, 24 hour and period codes (1-28 days active)
Option for cabling or battery operation
Low power energy
- IP67 protection rate for indoor and outdoor use
- HxLxWx: 75x50x8mm
- Customised front labels
480005 C1000LP black, Mykey
480006 C1000LP white, Mykey
Keypad and bluetooth reader for Stand Alone
- For mobile phones and Bluetooth tags
- Up to 512 user codes/tags
- Adjustable range detection
- Delivered with Conlan Wiegand Controller (Art. 460116)
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
OBS. Mykey size is delivered with an external bluetooth antenna
482230 CB1000LE black, Mykey
482231 CB1000LE white, Mykey
482130 CB1000LE black, Classic
482131 CB1000LE white, Classic
Mifare reader for Stand Alone
- Up to 80 users
- All programming can be copied between readers via DESFire card (Art. 480081)
- 2 outputs
- IP67 protection rate, for indoor and outdoor use
- HxWxL: 50x50x8 mm.
- Customised front labels
480060 M1000 black
480061 M1000 white
Prox reader for Stand Alone
- Up to 80 users
For both Atmel and E-Marine
- 2 outputs
- IP67 protection rate, for indoor and outdoor use
- HxWxL: 50x50x8 mm.
- Customised front labels
480070 P1000 black
480071 P1000 white
Keypad for Stand Alone
- Up to 28 user codes
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxWxL: 130x50x8 mm.
- Customised front labels
460100 CT1000v2 black
460106 CT1000v2 white
Proximity reader for Stand Alone
- Reader for Atmel or EM
- Up to 1024 users
- 1 output
- IP67 protection rate for indoor and outdoor use
- HxWxL: 130x50x8 mm.
- Customised front labels
